NORJIN 12V Mini Electric Linear Actuator 3″ Stroke, 64N/14lbs, Speed 15mm/s, Linear Motion Actuators w/Mounting Brackets, for Sofa, TV, Table, Cabinets, Window Opener, Robotics, Home Automation

Price: $27.95
(as of May 21, 2025 03:52:47 UTC – Details)

Product Description

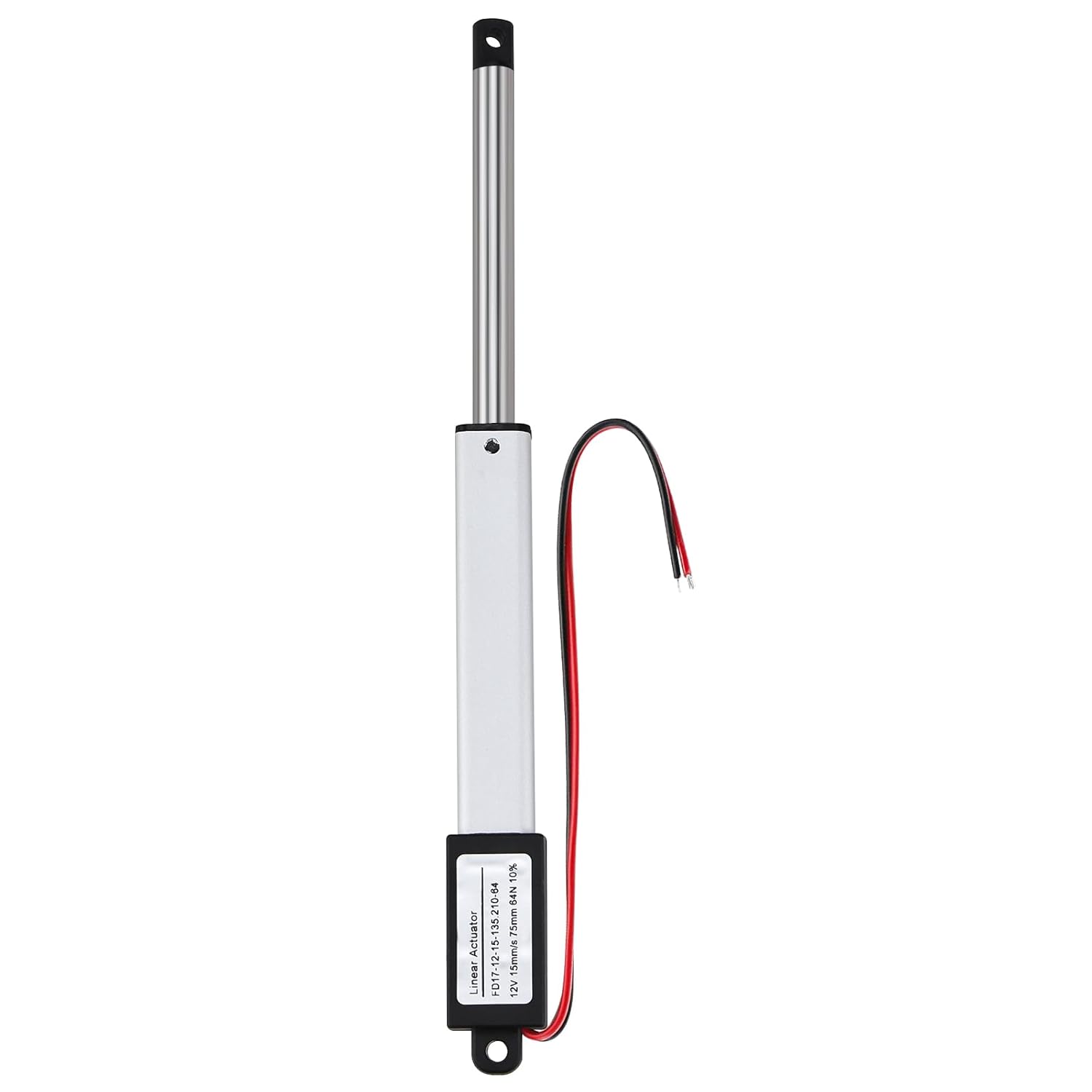

12V Electric Micro Linear Actuator – 3″ Stroke

The Extended Length: 3″(75mm) mini electric actuator is powered by 12V DC power supply and operates at a speed of 15mm/s for fast, smooth movement. The 3-inch stroke linear actuators are compact and can lift low to medium forces. Its size is ideal for projects where space is limited.Made of high quality aluminum, more safe & well constructed for long-term use.

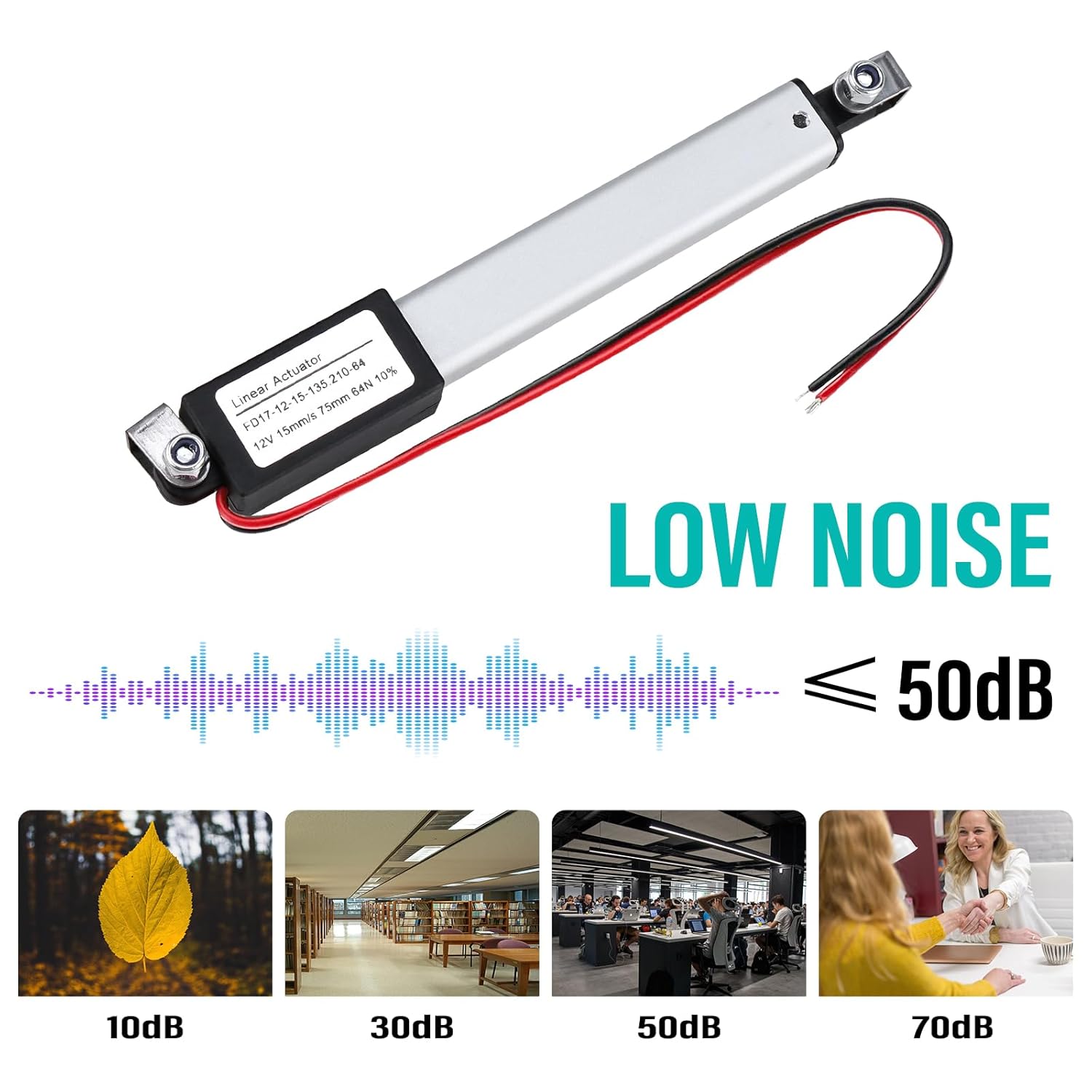

Low noise design, make sound lower than 50 db, suitable for hospitals, libraries and massage.

Product Detail: Stroke Length: 3″(75mm) Retracted Length: 5.3″(135mm) Extended Length: 4″(100mm) Speed: 15mm/s Input Voltage: 12VDC Shell Material: Aluminum Alloy Maximum Load: 64N(14.4lbs)

Caution:

1. The actual load does not exceed the rated load. Please use 12V DC power. The product will not function properly if smaller voltages are used, and using larger voltages may damage the product. 2. Prolonged exposure to extreme operating conditions of the mini linear actuator will reduce product life.

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.0 out of 5 stars 34

4.0 out of 5 stars 34

4.0 out of 5 stars 34

4.0 out of 5 stars 34

4.0 out of 5 stars 34

Price

$19.98$19.98 $23.99$23.99
— no data
$27.95$27.95
— no data

Stroke Length
0.8″/20mm 1.2″/30mm 2″/50mm 3″/75mm 4″/100mm

Speed
15mm/s 15mm/s 15mm/s 15mm/s 4mm/s

Load Capacity
32N/7.2lbs 64N/14lbs 64N/14lbs 64N/14lbs 200N/45lbs

Protection Class
IP54 IP54 IP54 IP54 IP54

Application
Fan Blades, Cabinets, Window Opener, Robotics, Home Automation Fan Blades, Cabinets, Window Opener, Robotics, Home Automation Fan Blades, Cabinets, Window Opener, Robotics, Home Automation Fan Blades, Cabinets, Window Opener, Robotics, Home Automation Fan Blades, Cabinets, Window Opener, Robotics, Home Automation

Package
1 x Mini Electric Linear Actuator 2 x Mounting Racks 1 x Mini Electric Linear Actuator 2 x Mounting Racks 1 x Mini Electric Linear Actuator 2 x Mounting Racks 1 x Mini Electric Linear Actuator 2 x Mounting Racks 1 x Mini Electric Linear Actuator 2 x Mounting Racks

Package Dimensions ‏ : ‎ 8.43 x 5.51 x 1.57 inches; 3.53 ounces
Item model number ‏ : ‎ BO-0011
Date First Available ‏ : ‎ December 23, 2023
Manufacturer ‏ : ‎ Bnojin Supply
ASIN ‏ : ‎ B0CQV3WSFB
Country of Origin ‏ : ‎ China
✅【Parameter】 Mini electric linear actuator motor, stroke length: 3″/75mm, max load capacity: 64N/14.4lbs, travel speed without load: 15mm/s, protection class: IP54 rated, input voltage: 12VDC.
✅【High Quality Material】The micro linear actuator is made of high quality aluminium with two ends made of metal, its renewed design avoids the breakage of the extended and retracted rod in case of overweight. The built-in limit switch allows it to stop in any position and automatically stops when it reaches the top.

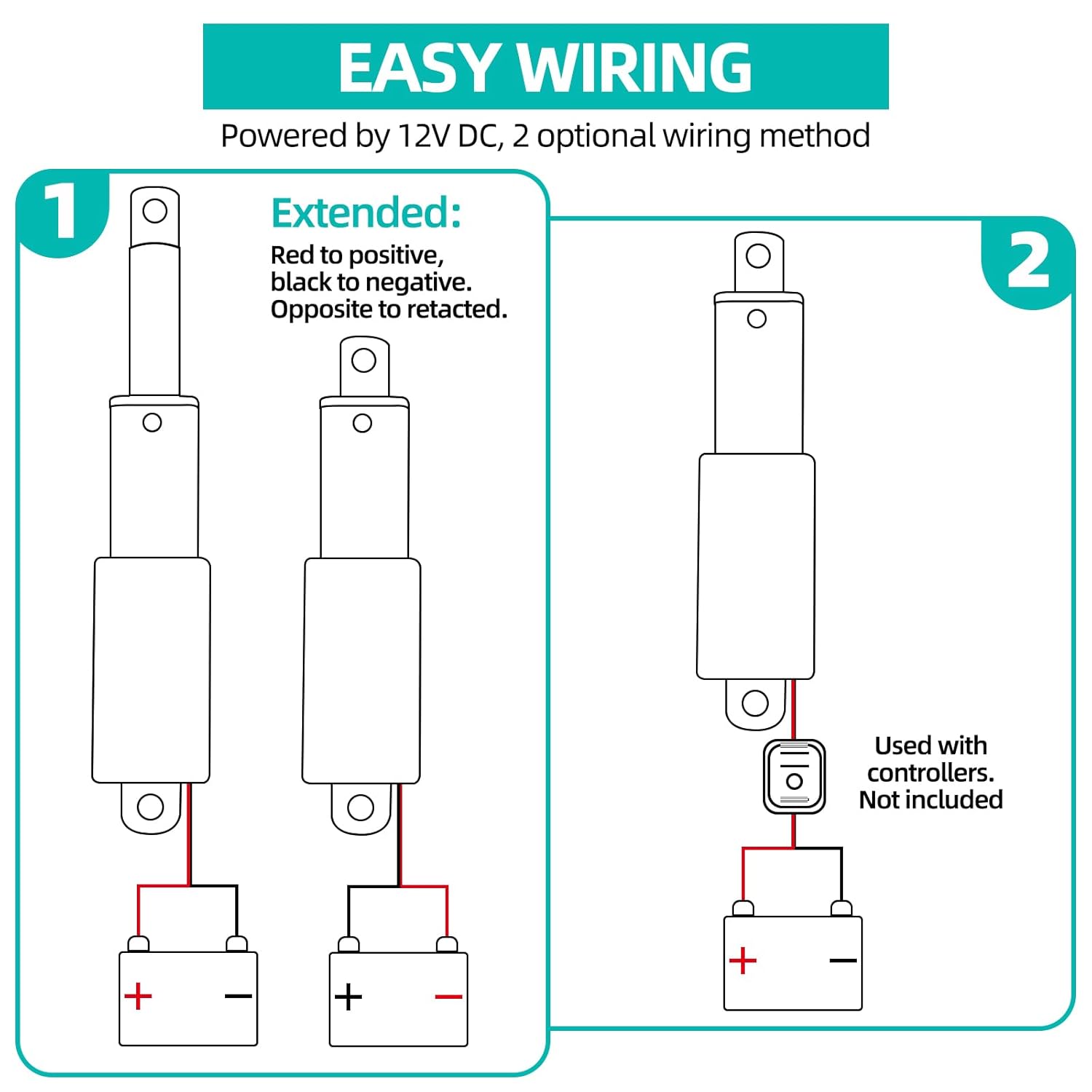

✅【Easy to Install】The electric linear actuator comes with mounting brackets, making it very easy to install. Connect the positive and negative terminals correctly and apply voltage, the linear actuator will extend; reverse the polarity and it will retract.
✅【Compact Design】The mini linear actuator is compact, small and lightweight, with short circuit protection, overload protection and over voltage protection design. It is ideal for home automation, robots, cabinet, industrial electric lifting systems and other equipment.
